Add-On Monitor for VistaView Lite - SBM005
4" 720P Display & Clear Night Vision: See your baby clearly, day or night.
2-Way Talk & Soothing Sounds: Comfort your baby with your voice or lullabies.
Temperature Alert: Monitors room temperature and triggers an alert when it exceeds the preset limit.
Smart Alerts: Sends alerts when the baby moves or cries, keeping you informed.
VOX Mode: Automatically detects baby’s sounds and triggers the screen to show you when there’s a noise.
Wi-Fi OFF Mode: Disconnect Wi-Fi to ensure peace of mind without an internet connection.
VistaView Lite 1080P Smart Baby Monitor
Smart Parenting, Secure Monitoring at Your Fingertips.
Monitor & APP Control
WiFi or Non-WiFi — monitor and app, your choice.
200% ↑ Motion Detection
Catches every stir, every stretch — before you even hear a sound.
300° Pan & 75° Tilt
See every corner of the nursery — remotely, in seconds.
Personalized Feeding Timer
Set it once. Never miss a feed, even at 3 AM.
Always On Guard: Instant Movement Alerts
Create personalized safe zones in the app and receive real-time notifications if your baby wakes or moves beyond them. Protect your little one and enjoy uninterrupted peace of mind every moment.
Real-Time Audio & Video Monitoring
Hear every breath of your newborn with adjustable volume, or switch to VOX mode to detect cries—even with the screen off. Stay connected with your little one through two-way talk, no matter where you are in the house
Temp & Humidity Monitor
Notified the moment the room gets too hot or cold — before your baby wakes up crying.
Two Way Talk
Soothe your baby with your voice, from anywhere in the house.
See It All, Up Close
Enjoy 300° pan, 75° tilt, and 2x/4x zoom for full-room coverage and every detail at your fingertips.
Triple Security Protection for Total Confidence
Enjoy total security with multiple layers of protection, including an optional Wi-Fi OFF mode, 256-bit AES encryption, and exclusive user pairing to keep access secure while keeping your connection safe from unwanted access. Support OTA updates for more features Updates.
Monitor Your Way — With or Without WiFi
Use WiFi mode to check in from work or the store. Switch to offline mode at home for complete privacy. One monitor, total flexibility.
WHAT'S INCLUDED
Everything you need for a quick, easy set up.
Camera x 1
Monitor x 1
USB Charger x 2
Charging Cable x 2
Quick Guide x 1
User Manual x 1
Thanks Card x 1
Specifications
Product Name
VistaView Lite 4” Smart Baby Monitor
Model
DC-SBM005
Price
$99.99
App Control
Yes
Transmission Distance
≥305 meter / 1000 feets (no obstacle)
Auto VOX Mode
YES
Two-way communication
YES
Feeding Reminder (Alarm)
YES
Temperature Monitoring
YES
Lullaby
8
Number of supported cameras
2，Split View
Smart Features
Motion Detection / Custom Feeding Clock / Local and Cloud Storage

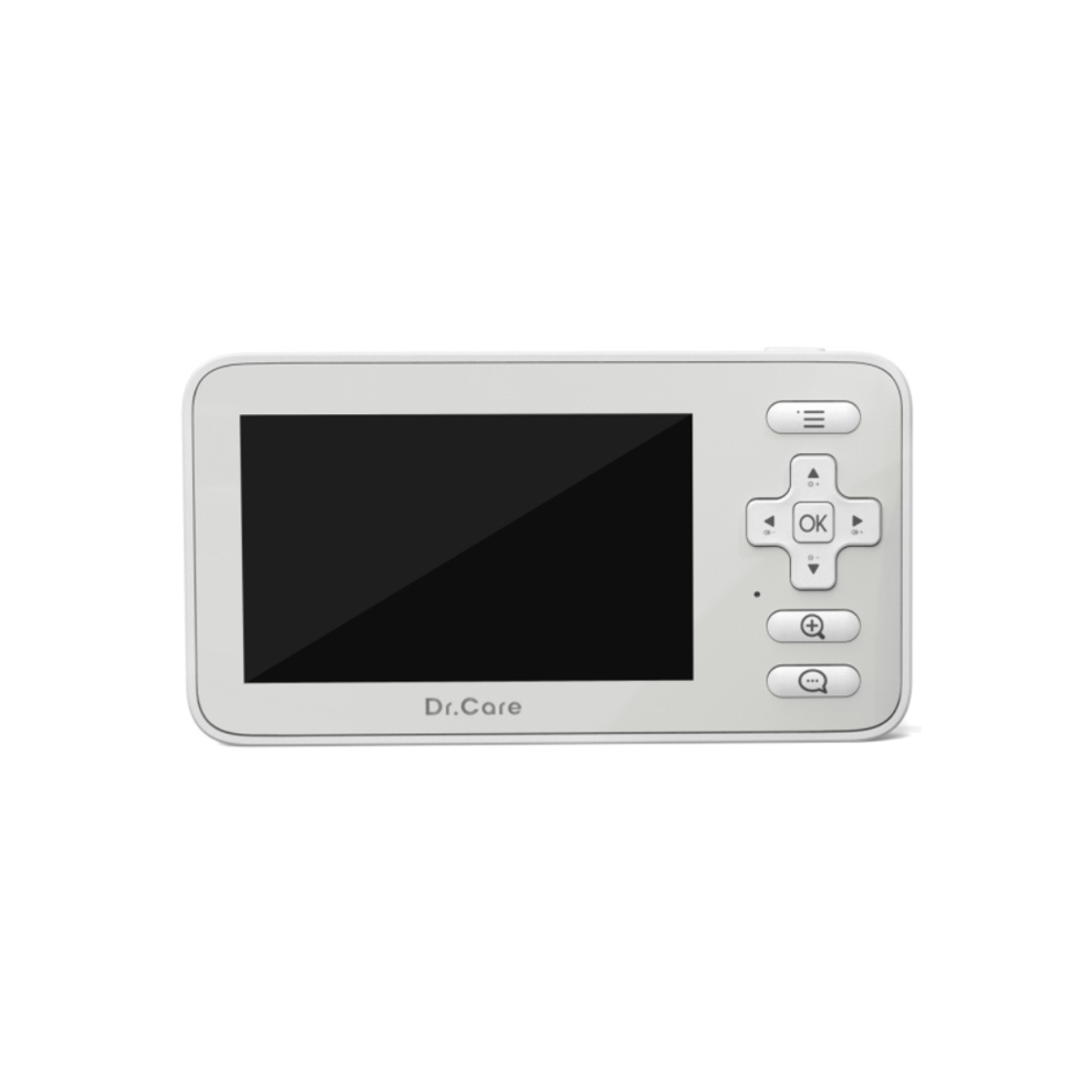

Monitor
Resolution
720P
Display
4 inch IPS Color Display
Battery
3000mAh
Monitor unit play time
Audio Only: 15 hrs , Video Streaming: 9.5 hrs
Power Adapter
5.0V=2A, type C
Lullabies
8
Zoom
2X&4X
Camera
COMS
1080P
Night Vision
Automatic infrared night vision
Pan &Tilt
75 degrees vertical , 330 degrees horizontal
Capture & Share Precious Memories
Yes
Temperatureand humitity Monitoring
YES
Storage
SD card storage (not included) or optional cloud storage
Product Comparison
Model
SBM005
Model
SBM002
Model
SBM001
Camera Resolution
1080P
Camera Resolution
1080P
Camera Resolution
2K
Screen Size
4 inch
Screen Size
4 inch
Screen Size
5 inch
Battery Capacity
3000 mAh
Battery Capacity
2500 mAh (Removable)
Battery Capacity
5000 mAh
Night Vision
✓
Night Vision
✓
Night Vision
✓
Motion Detection
✓
Motion Detection
✓
Motion Detection
✓
Cry Detection
_
Cry Detection
_
Cry Detection
✓
Auto Tracking
_
Auto Tracking
_
Auto Tracking
✓
Connectivity
App + Non-WiFi (Dual Mode)
Connectivity
App + Non-WiFi (Dual Mode)
Connectivity
App + Non-WiFi (Dual Mode)
Temp & Humidity Monitoring
✓
Temp & Humidity Monitoring
✓
Temp & Humidity Monitoring
✓
Feeding Alarm
✓
Feeding Alarm
✓
Feeding Alarm
✓
Lullaby
8
Lullaby
8
Lullaby
8
FAQ
- To download the app, search for "TheDrCare" on the Apple Store or Google Play. For a detailed, step-by-step setup guide for your DC-SBM005 baby monitor, watch this video tutorial:
- Step-by-Step Tutorial Video for DC.Care DC-SBM005.
- If you have further questions, please reach out through live chat or email us at Support@thedrcare.com for assistance.
- To monitor your baby’s wake-up time, set the motion detection sensitivity to high while they are asleep. This setting will alert you if your baby moves during the night or wakes up. Additionally, this technology uses an image recognition algorithm that may trigger motion alerts when there are differences between images in low-light conditions. We recommend testing different motion sensitivity levels to find the one that works best for you.
- The SD card supports FAT32 format, with a maximum capacity of 128GB. If your SD card isn’t formatted as FAT32, you can format it directly through the monitor by going to “Settings” in the menu. Videos or photos you take in the app can be saved to the SD card, or you can opt for monthly cloud storage. We recommend using the free SD card storage option first.
Please press the Wi-Fi button three times to reset, and when you hear the 'ding ding ding' sound, it means the reset was successful; then, add the camera, continue pressing the Wi-Fi button until it shows 'Discovering devices,' and connect to a 2.4G Wi-Fi network."
To help ensure a smooth upgrade process, we’ve created a comprehensive guide document and video tutorial for your reference. Below, you’ll find detailed instructions for upgrading both the camera and the monitor:
Google Sheet with Instructions
YouTube Video Tutorial
The DC-SBM005 offers fewer smart detection features compared to the DC-SBM001 but retains the most commonly used motion detection feature. It is still more advanced than most other baby monitors on the market, though it comes with a slightly smaller screen.
